OSPH-8 (Center Pitch: 12.0mm/472mil)
OSPH-8 (Center Pitch: 12.0mm/472mil)
- High current
- Rated Current: 200A
- Full Travel: 10.0mm
- Recommended Travel: 6.6mm
- Spring Force @ Recommended Travel: 890gf/2000gf
Test Probe(mm)
OSPH-8-F (Center Pitch: 12.0mm/472mil)
Tip Styles(mm)
F
E
G
R
Mechanical Specification
| Maximum stroke | 10.0mm |
| Recommended stroke | 6.6mm |
| Spring pressure at the recommended stroke | 890gf/2000gf |
Materials and Plating
| Plunger | Alloy, Gold plated |
| barrel | Brass, Nickel plated |
| spring | Stainless Steel |
| Fixing nut | Brass, Nickel plated |
Electrical Specification
| Rated current | 200A |
| Intrinsic resistance | <0.1mΩ |
Temperature
| Standard specifications | -40 to + 180 ℃ |
Temperature Characteristics
note:
Test Points: Tip of plunger
How to assemble
How to Set Up
How to Wire

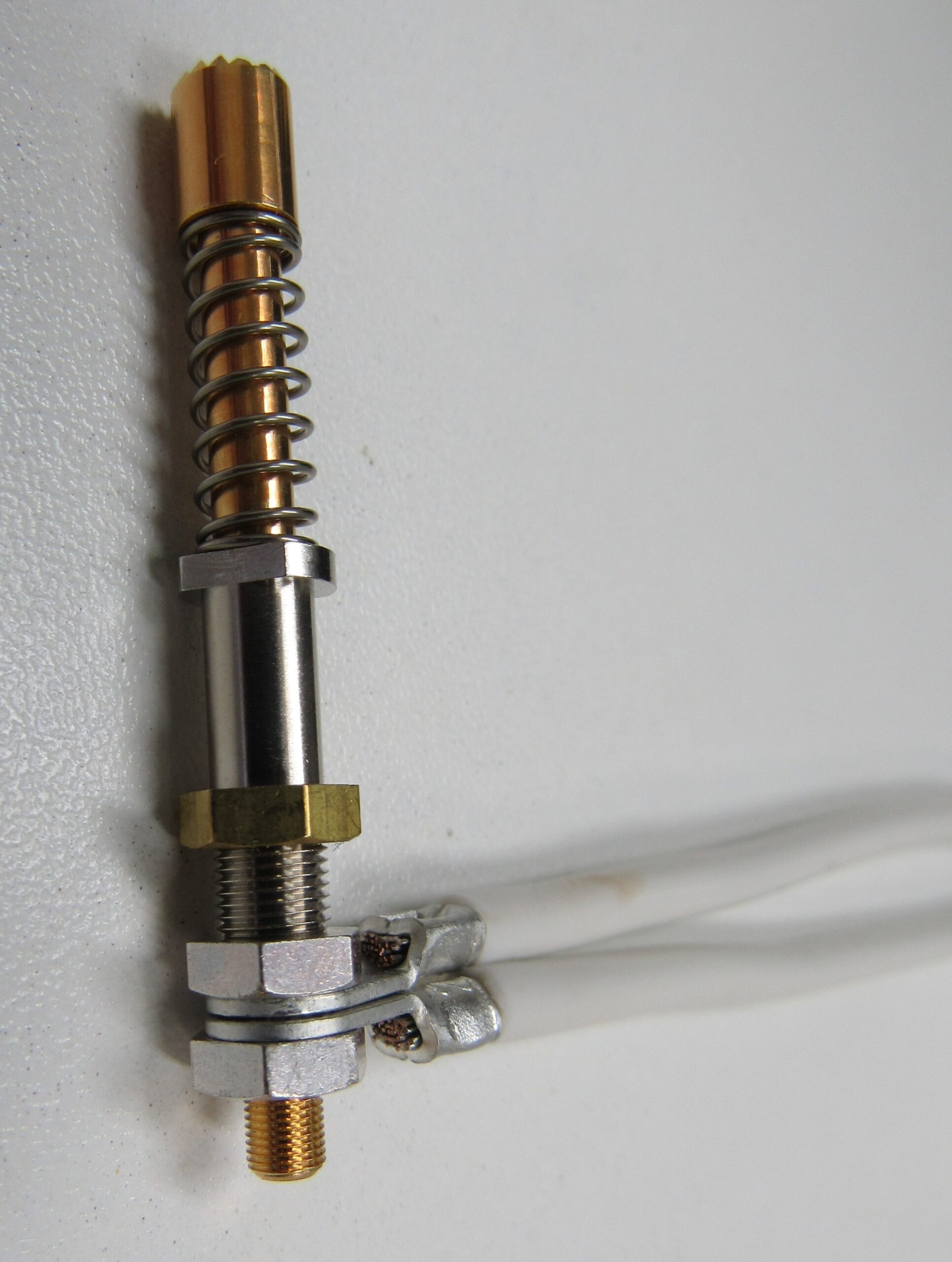

2 pcs x HCC-3-L500-M5/N

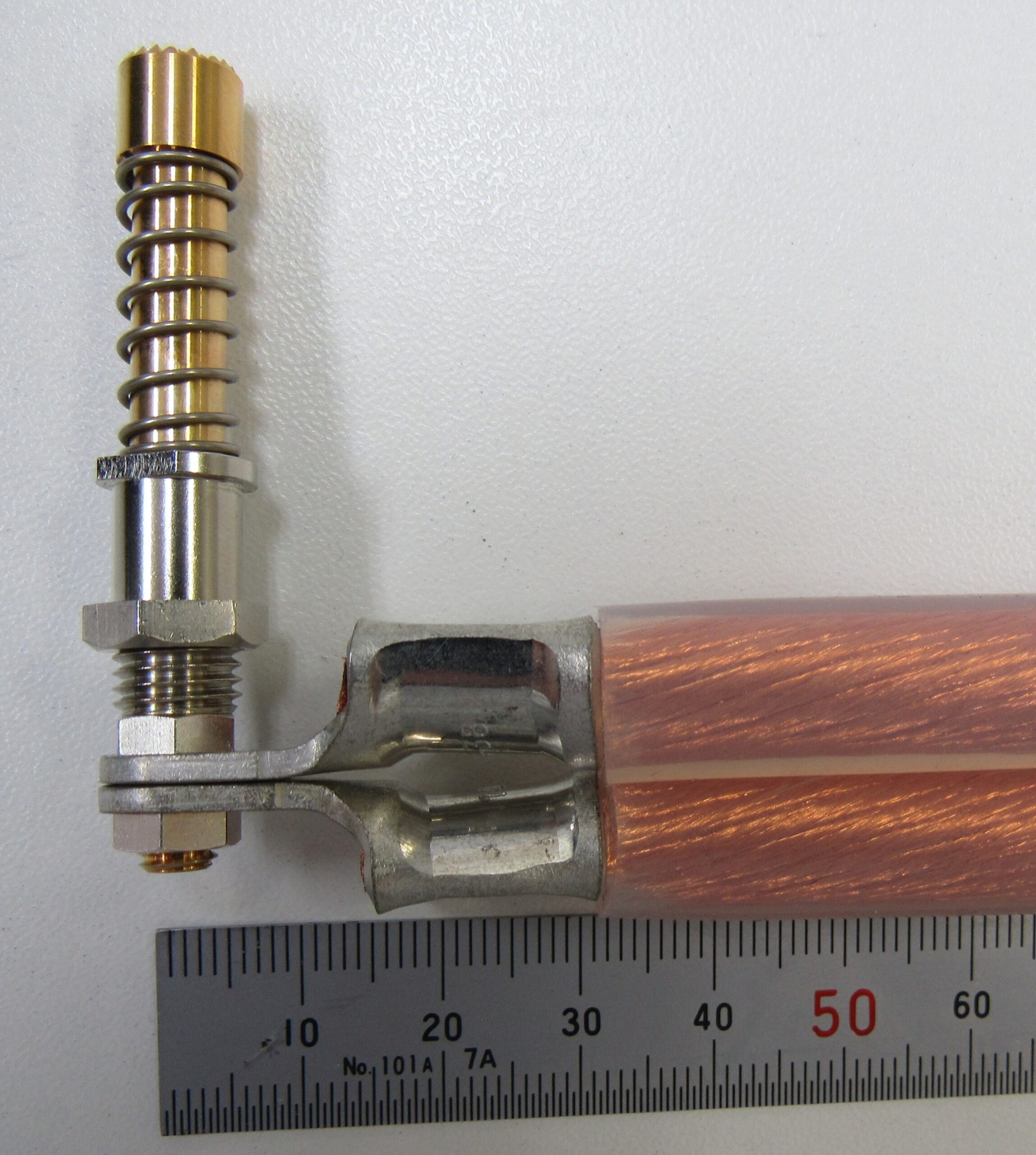

2 pcs x HCC-8-L400-M5/N
Cable with Ring Terminal

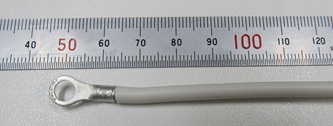

HCC-3-L500-M5/N
HCC-8-L400-M5/N
Compatible cable with ring terminals
Highly flexible and does not affect probe movement.
Use multiple cables depending on the current capacity required.
Two different types of cables cannot be used together.
| Cable Spec | HCC-3-L500-M5/N | HCC-8-L400-M5/N |
| Length | 500mm | 400mm |
| Electrode outer diameter | 1.8mm (stranded wire) | 7.0mm (stranded wire) |
| Cable outer diameter | About 4.0mm | About 11.8mm |
| Current | 50A | 130A |
| Temperature | -30～+180℃ | -50～+90℃ |
| Cable end | Open | Open |
Interface Pin
Please order if you need a mating side for OSPH-8.
Please refer to the link below for details.
Product name : IP08L4500-01
Barrel Fixing Tool
A tool for insertion and removal of the M8.0 nut used to secure the barrel.
Please refer to the link below for details.
Product name : OSPH8-ST-M8.0
HOW TO ORDER
Series name ― Tip shape
[Example] OSPH-8-E
This product will be shipped in parts.
(Plunger/barrel/spring/large nut/small nut x2)
For installation and wiring, please see “How to assemble”.
* Specifications are subject to change without notice.
