Test contacts for RJ-9

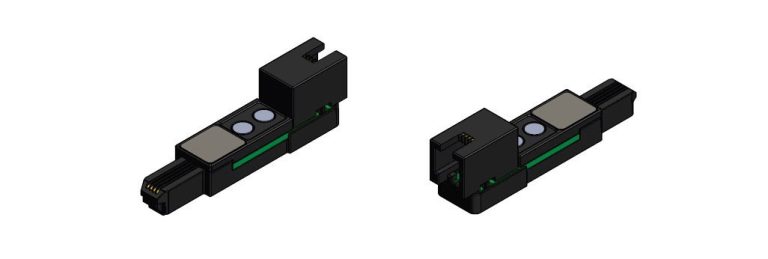

Test contact for RJ-9 (4 point)

Order Code: 2112151

  • For RJ-9 interface contacts.
  • Application: For RJ-9 connector inspection (microphone, headset, etc.).
  • Lifespan: less than 200,000 times.
  • Easy to connect during inspection.

Electrical Specification

Rated Current 1.5A at 25℃ (0.2A at 70℃)
Intrinsic resistance <20mΩ
Maximum data speed 1Gbit/s
voltage 25VAC/60VDC

Temperature

Standard Specifications -20 ～ +75℃

HOW TO ORDER

2112151





* Specifications are subject to change without notice.
