Test contacts for HDMI 1.4

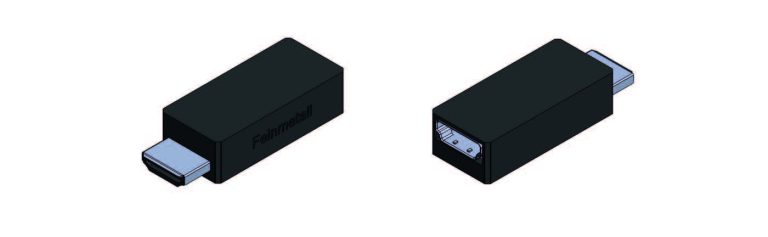

Test contacts for HDMI 1.4 (19 points)

Order Code: 2112148

  • For HDMI interface contacts.
  • Application: For HDMI connector inspection (video, audio, etc.).
  • Lifespan: less than 50,000 times.
  • Connection during inspection is easy (with chamfer).

Electrical Specification

Rated Current 0.5A at 25℃
Intrinsic resistance <20mΩ
Maximum data speed 8.16Gbit/s
voltage 25VAC/60VDC

Temperature

Standard Specifications -20 ～ +75℃

HOW TO ORDER

2112148（TC-P197 019 HDMI 1.4）





* Specifications are subject to change without notice.
