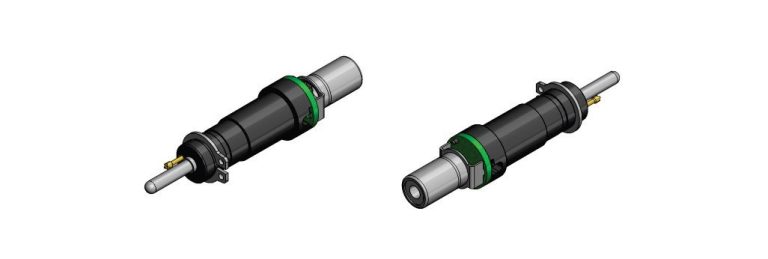

Test contacts for RCA
Test contacts for RCA
Test contacts for RCA
Order Code: 2112150
- For RCA interface contacts.
- Application: For RCA connector inspection (connectors for audio coaxial cables, etc.).
- Lifespan: about 200,000 times.
- The connection during inspection is simple.
Electrical Specification
| Rated Current | 1.5A at 25℃ |
| Intrinsic resistance | <50mΩ |
| Maximum Frequency | 500kHz |
| voltage | 25VAC/60VDC |
Temperature
| Standard Specifications | -20 ～ +75℃ |
HOW TO ORDER
2112150
* Specifications are subject to change without notice.
