OSPH-5 (Center Pitch: 8.5mm/335mil)

Highslide JS

OSPH-5 (Center Pitch: 8.5mm/335mil)

  • High current
  • Rated Current: 100A
  • Full Travel: 10.0mm
  • Recommended Travel: 6.6mm
  • Spring Force @ Recommended Travel: 660gf

Test Probe(mm)

OSPH-5-F (Center Pitch: 8.5mm/335mil)

Highslide JS

Tip Styles(mm)

Highslide JS
F
Highslide JS
E
Highslide JS
G
Highslide JS
R

Mechanical Specification

Maximum stroke 10.0mm
Recommended stroke 6.6mm
Spring pressure at the recommended stroke 660gf

Materials and Plating

Plunger Alloy, Gold plated
barrel Brass, Nickel plated
spring Stainless Steel
Fixing nut Brass

Electrical Specification

Rated current 100A
Intrinsic resistance <0.1mΩ

Temperature

Standard specifications -40 to + 180 ℃

Temperature Characteristics

Highslide JS
Highslide JS

note:

Test Points: Tip of plunger

How to assemble

How to Set Up

Highslide JS

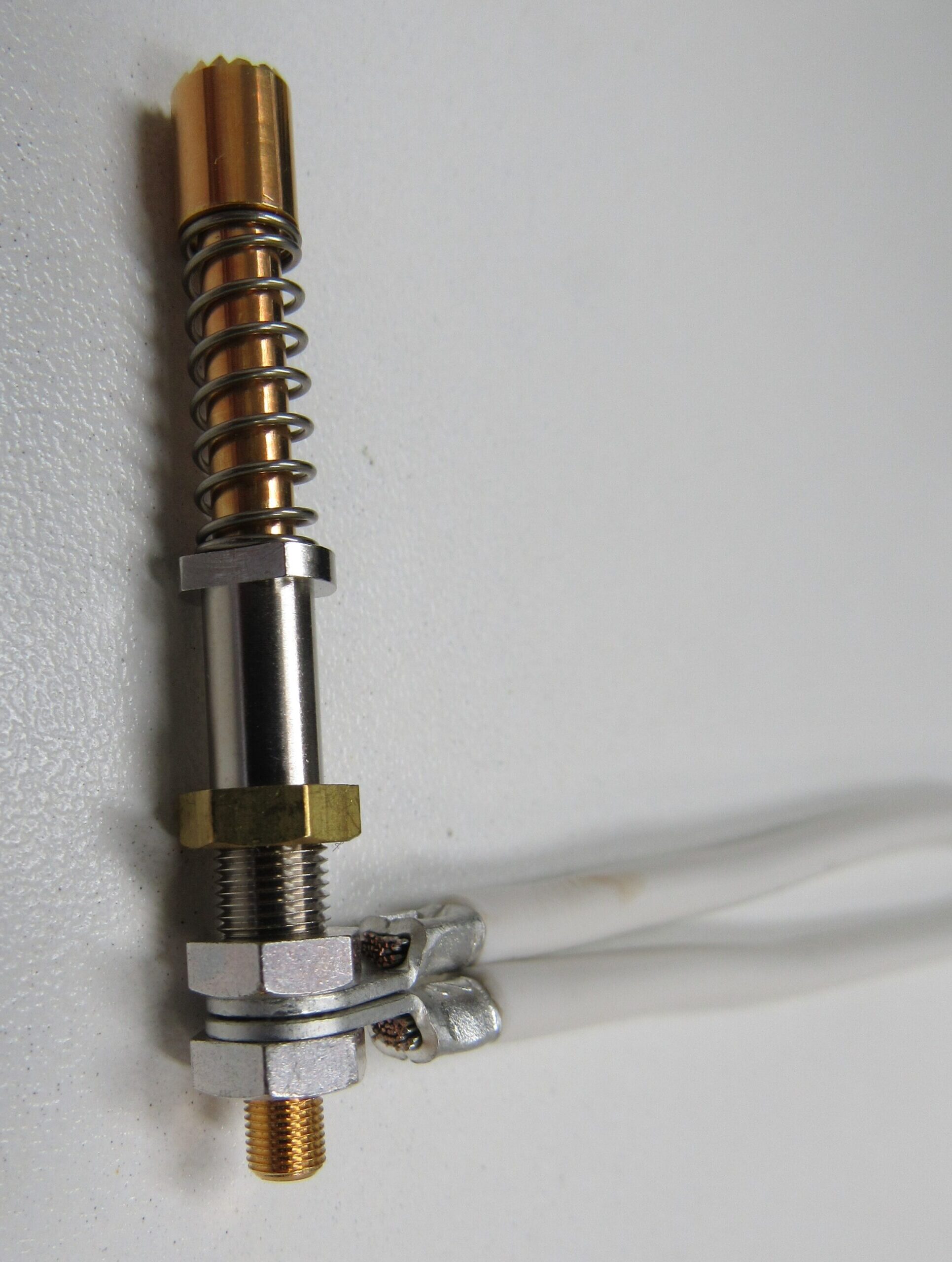

How to Wire

Highslide JS

Interface Pin

Highslide JS

Please order if you need a mating side for OSPH-5.

Please refer to the link below for details.



Product name : IP05L4000-01

Barrel Fixing Tool

A tool for insertion and removal of the M5.0 nut used to secure the barrel.

Please refer to the link below for details.



Product name : OSPH5-ST-M5.0

HOW TO ORDER



Series name ― Tip shape

[Example] OSPH-5-E



This product will be shipped in parts.
(Plunger/barrel/spring/large nut/small nut x2)
For installation and wiring, please see “How to assemble”.





* Specifications are subject to change without notice.
